Speaker Placement Calculator: The Listening Triangle and Boundary Distances

Placement is the only acoustic improvement that costs nothing, and in most home rooms it is worth more than the first several hundred dollars of treatment. This calculator gives you the exact triangle, the listening position, the tweeter height, and the frequency at which your chosen wall distance will cancel.

Why an equilateral triangle and not something else?

Stereo works because your brain compares the arrival time and level of the same sound at both ears. A sound panned dead centre is reproduced identically by both monitors, and it only appears to come from a point in front of you if both monitors are exactly the same distance away. Get that distance wrong by even a few inches and the phantom centre drifts, which means every panning decision you make in that seat is measured against a broken reference.

The equilateral case, where the spacing between the monitors equals the distance to your head, is the standard because it puts each monitor 30 degrees off your centre line, giving a total included angle of 60 degrees. Wider than that and the centre image thins out into a hole. Much narrower and the stereo field collapses into a narrow band you cannot make decisions in.

The geometry to note: because the triangle is equilateral, your head sits back from the line joining the two monitors by spacing x 0.866, not by the full spacing. With monitors 4 ft apart, you sit 4 ft from each one but only 3.46 ft behind the plane they occupy. That difference catches people out when they measure with a tape from the wall.

Why 38 percent of the room length?

Every axial mode along the length of the room has a pressure null at the exact midpoint. Sit at 50 percent and the fundamental length mode cancels at your ears, which is the classic complaint that the bass disappears when you sit down properly and returns when you stand up. Sit hard against the back wall and you get the opposite: a pressure maximum for every mode at once, and a low end that swamps everything.

Thirty-eight percent is the widely used compromise. It sits away from the midpoint null of the first mode and away from the boundary maximum, and it happens to avoid the strongest nulls of the second and third order modes as well. It is a starting point rather than a law, and once you are in the neighbourhood you should move a foot forward and back and listen to a bass-heavy reference to find the actual best spot.

Run your dimensions through the room mode calculator first. If your room has a pileup, the 38 percent rule is a starting point and the mode chart tells you which direction to move from there.

How high should the monitors sit?

Tweeter at ear height, measured sitting in the posture you actually work in rather than sitting up straight for the measurement. The tweeter is the most directional driver in the box, so its output falls off fastest as you move off its axis. A tweeter six inches below your ears costs you real high frequency information and, worse, costs you an inconsistent amount of it depending on how you are slouching.

On a standard 29 in desk with ears at 45 in, you need to raise the tweeter about 16 in above the desk surface, and on most 5 inch monitors the tweeter sits near the top of the cabinet, so the riser needs to make up the difference. This is exactly what isolation stands are for, and they solve the desk coupling problem at the same time. For a bigger lift, floor stands decouple the monitors from the desk entirely, which is the better answer whenever the room allows it.

What is the boundary cancellation, and why does the wall distance matter?

Sound leaving the back of a monitor reflects off the front wall and returns to combine with the direct sound. When the extra path length equals half a wavelength, the two arrive out of phase and cancel. That produces a notch, and the notch frequency depends entirely on how far the monitor is from the wall.

notch frequency = 1130 / (4 x distance in feet)

So a monitor 2 ft from the wall has its first cancellation at 141 Hz, which is squarely in the region where the body of a bass guitar and the low mids of a male vocal live. A monitor 6 in from the wall pushes the notch up to 565 Hz and, more usefully, the boundary lift below it becomes a broad predictable shelf that most monitor designs offer a rear switch to compensate for.

The rule that follows: get the monitors close to the wall, under about 8 inches, or well away from it, over about 3 feet. The dead zone is 1 to 2.5 feet, which is unfortunately exactly where a desk pushed against a wall puts them. If you cannot avoid that distance, thick absorption on the front wall directly behind each monitor is the fix, because it stops the reflection from returning at full strength.

Isolation stands do two jobs at once: they raise the tweeter to where it belongs and they decouple the cabinet from the desk so the desk stops resonating along with the music. Compare the options in the treatment roundup and read the full workflow in how to position studio monitors.

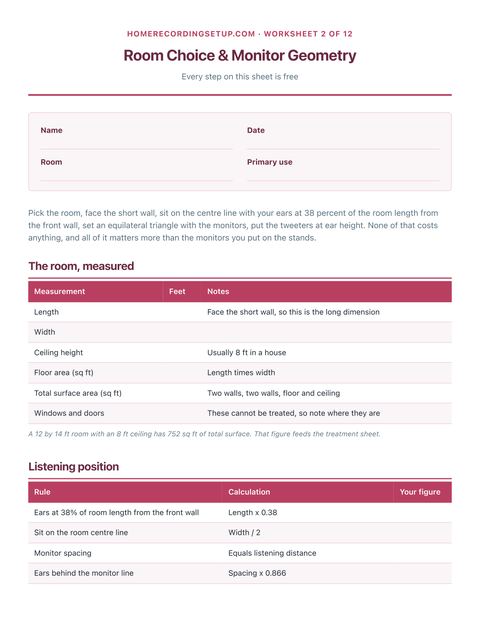

The setup order that works

1. Face the short wall. Firing down the long dimension gives the front wall reflection the longest possible path before it returns, and puts the strongest length mode behind you rather than across you.
2. Get on the centre line. Left to right symmetry is more important than any other single placement decision, because asymmetry pulls the phantom centre off centre.
3. Set the listening position to 38 percent. Then adjust by ear with a reference track you know well.
4. Set the triangle. Spacing equal to listening distance, tweeters at ear height, both toed in at your head.
5. Set the wall distance. Close, or far, never in between.
6. Then treat. First reflection points and corners, sized by the treatment calculator.

Doing it in that order matters, because treatment placed around a badly positioned pair of monitors treats the wrong reflection points. Every step above is free until step six.
