Acoustic Treatment Calculator: Panel Coverage by Room Size
A mixing room needs absorption on roughly 15 to 25 percent of its total surface area, and a room you also track in needs 20 to 30 percent. A 12 by 14 foot room with an 8 foot ceiling has 752 sq ft of surface, so 20 percent coverage is about 150 sq ft, which is nineteen 2 by 4 ft panels or ten 4 inch thick ones.
Definition: Acoustic treatment is material placed inside a room to absorb or scatter sound after it leaves the speaker, which changes what the room does to the sound rather than how much sound escapes it.
The two questions people actually need answered are how much to buy and where to put it. This calculator answers both, in priority order, so you can buy in stages instead of guessing at a total and hoping. It also tells you which panels are doing real work and which ones are decoration.
| Stage | Position | Panels | Sq ft | What it fixes |
|---|
Where does the coverage percentage come from?
It comes from reverberation time. A room's decay time depends on its volume and on how much absorption is in it, and the relationship is described by the Sabine equation: reverberation time is proportional to volume divided by total absorption. Solve that for a small room and a target decay time in the region of 0.3 seconds, and you land at the coverage bands the calculator uses.
Those bands are targets, not laws, and the reason they are ranges rather than single numbers is that a room already contains absorption you did not install. A carpeted room with a sofa, heavy curtains and a bookshelf is meaningfully further along than an empty room with a laminate floor, and the calculator cannot see your furniture. Treat the number as a ceiling to work toward and stop when the room sounds right, which is usually sooner than the number suggests in a furnished space and later than it suggests in an empty one.
A tracking room needs more coverage than a mixing room because a microphone hears the room directly and prints it permanently into the file. A monitoring problem can be worked around by checking on headphones. A room recorded into a vocal take cannot.
Why do corners come first?
Sound pressure is always highest at a boundary and highest of all where boundaries meet. Every room mode, regardless of its frequency, has a pressure maximum in every corner. Put absorption there and you are working on all of them simultaneously, which is not true of a panel in the middle of a wall.
There is a second reason, and it is about physics rather than position. Porous absorption works on air velocity, not pressure, and velocity is highest a quarter wavelength away from a boundary. At 100 Hz the wavelength is 11.3 ft, so the quarter-wavelength point is 2.8 ft out from the wall. You cannot hang a panel 2.8 feet into the middle of a bedroom, but a trap straddling a corner sits diagonally across it and puts a significant depth of material into exactly that region. That is why a corner trap reaches lower than a flat panel of the same volume.
If you only ever do one thing to a room, straddle the two front corners with the thickest absorption you can physically fit and then re-run your reference tracks. The change is not subtle and it is not a matter of taste. What you are hearing is the low end stopping ringing, and the practical result is that bass decisions start holding up outside the room. Everything after that, side wall points, cloud, front wall, is worth doing and none of it moves the needle the way the first two corners do.
How thick, and does gapping really help?
Thickness is the variable that decides how low the panel works, and the relationship is not subtle. Here is what a typical rigid mineral wool panel does across the spectrum, expressed as an absorption coefficient where 1.00 means all the energy hitting it is absorbed.
| Panel | 125 Hz | 250 Hz | 500 Hz | 1 kHz | 2 kHz | 4 kHz |
|---|---|---|---|---|---|---|
| 1 in, flat to wall | 0.08 | 0.25 | 0.65 | 0.85 | 0.93 | 0.95 |
| 2 in, flat to wall | 0.20 | 0.55 | 0.95 | 1.00 | 1.00 | 1.00 |
| 2 in, gapped 2 in | 0.35 | 0.75 | 1.00 | 1.00 | 1.00 | 1.00 |
| 4 in, flat to wall | 0.45 | 0.90 | 1.00 | 1.00 | 1.00 | 1.00 |
| 4 in, gapped 4 in | 0.70 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
| 2 in acoustic foam | 0.10 | 0.30 | 0.75 | 0.90 | 0.95 | 0.95 |
Two things jump out of that table. First, a 1 inch panel at 125 Hz absorbs about 8 percent of what hits it, which is functionally nothing, while the same panel at 4 kHz absorbs 95 percent. That mismatch is exactly how a room ends up dead and muddy at once. Second, gapping a 2 inch panel 2 inches off the wall takes its 125 Hz figure from 0.20 to roughly 0.35, which is most of the way to what a 4 inch panel does flat. Gapping is the cheapest low frequency improvement available, and it costs only the mounting hardware .
Two inches of rigid fiberglass in a fabric frame is the workhorse of small room treatment. If you are building rather than buying, the same material comes as bare rigid board for a fraction of the finished price, and a frame plus fabric is an afternoon of work per panel. Compare finished options in the treatment roundup.
What treatment cannot do
It cannot stop sound leaving the room. That is soundproofing, it is a completely different set of materials, and confusing the two is the single most common and most expensive mistake in home recording. Absorption changes what happens inside the room. Stopping sound crossing a wall needs mass, decoupling and airtightness, none of which a fabric panel provides. If the problem is a neighbour, read the treatment versus soundproofing comparison before you spend anything.
It also cannot move a room mode. The mode frequency is set by the distance between two walls and nothing you hang on those walls changes that distance. Absorption reduces how long the mode rings, which is the audible half of the problem, but the peak and null pattern remains. That is why placement, worked out with the room mode calculator and the speaker placement calculator, has to come first.
Related tools
- Studio build cost calculator: what the full plan costs alongside the rest of the rig
- Treatment coverage chart: coverage percentages and coefficients for every room size
- How to treat a room: the complete step by step
- Foam versus mineral wool: what the material change actually buys
Frequently asked questions
How many acoustic panels do I need for my room?
Plan on treating 15 to 25 percent of the total surface area of the room for a mixing space, and 20 to 30 percent for a room you also record in. A 12 by 14 foot room with an 8 foot ceiling has 752 square feet of surface, so 20 percent is about 150 square feet of coverage, which is roughly nineteen 2 by 4 foot panels. Start with the corners and the first reflection points, which is about half of that.
Where should the first acoustic panels go?
Corners first, then the first reflection points on the side walls, then the ceiling cloud above the listening position, then the front wall behind the monitors. Corners come first because every room mode has a pressure maximum there, so absorption in a corner works on all of them at once. The side wall points come second because they are the reflections that most directly damage the stereo image.
How do I find the first reflection point?
Sit in the listening position and have someone slide a mirror along each side wall at ear height. Wherever you can see a monitor tweeter in the mirror is a first reflection point, and that is where a panel goes. Do the same on the ceiling with the mirror flat, and on the floor if the floor is hard. It takes five minutes and it beats measuring, because it accounts for your actual seat and your actual monitor positions.
How thick should acoustic panels be?
Two inches is the practical minimum and four inches is meaningfully better. A porous absorber does its best work at a quarter wavelength from the boundary, so at 125 Hz, whose wavelength is about 9 feet, a 2 inch panel flat on the wall is doing very little. Gapping a 2 inch panel 2 inches off the wall improves its low frequency performance almost as much as doubling its thickness, and it costs nothing but the mounting hardware.
Does acoustic foam actually work?
It works above roughly 500 Hz and does almost nothing below 200 Hz, which is where small room problems actually live. One inch foam glued flat to drywall will remove flutter echo and take the edge off a bright room, and it will not touch the note that booms. Mineral wool or rigid fiberglass of the same thickness absorbs substantially more low frequency energy for a similar price, which is why it is the standard in purpose-built rooms.
Can a room be over-treated?
Yes, and the failure mode is specific. Covering every surface with thin absorption removes the high frequencies while leaving the low frequencies untouched, which produces a room that sounds dead and muddy at the same time and is genuinely unpleasant to work in. The fix is not less material, it is thicker material and some diffusion or reflective surface left at the rear. Balanced absorption across the spectrum matters more than total quantity.

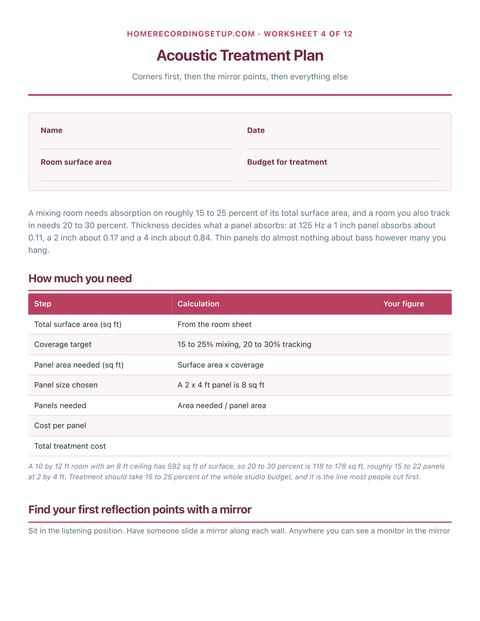

Working out your own room and signal chain? The Home Studio Build Planner is the paid version of these pages: 8 printable worksheets you fill in with your own numbers, plus the full PDF, $29.
